What are Control Rods?
Control rods are slender, cylindrical devices inserted into nuclear reactors to control the rate of the fission reaction. They are made of materials that absorb neutrons; particles that sustain the chain reaction in a nuclear reactor. By adjusting the position of these rods within the reactor core, operators can increase or decrease the number of neutrons available to continue the fission process, thereby controlling the reactor’s power output. In essence, control rods act like the brakes on a car. Just as brakes regulate speed, control rods regulate the intensity of the nuclear reaction, ensuring it remains steady and safe.
Role in Reactor Operation
Control rods are essential throughout a reactor’s operational cycle:
During startup, control rods are gradually withdrawn from the reactor core. This careful process allows the reactor to reach a state known as criticality, where the nuclear chain reaction becomes self-sustaining. Achieving criticality in a controlled manner is essential to ensure the reactor begins operation safely and predictably.
Once the reactor is running, control rods play a vital role in regulating power output. Operators make fine adjustments to the position of the rods to control the number of neutrons available for fission. This precise modulation helps maintain a stable and consistent energy production, preventing fluctuations that could affect reactor performance or safety.
When it’s time to shut down the reactor, the control rods are fully inserted into the core. This action absorbs the majority of free neutrons, halting the chain reaction and effectively stopping the reactor. The shutdown process is designed to be swift and reliable, ensuring that the reactor can be safely brought offline whenever necessary.
They work in tandem with other systems, such as coolant flow and fuel management, to maintain optimal reactor conditions and prevent overheating or runaway reactions.
How do Control Rods work?
Types of Control Rods
Not all control rods serve the same purpose. They are categorised based on their function:
Shim rods are primarily used for coarse adjustments in reactor reactivity. These rods are especially important during the start-up phase of a nuclear reactor or when compensating for fuel burnup over time. By inserting or withdrawing shim rods, operators can make broad changes to the neutron population, helping the reactor reach and maintain criticality.
Regulating rods, on the other hand, are designed for fine-tuned control during normal reactor operation. These rods allow operators to make precise adjustments to the reactor’s power output, ensuring that energy production remains stable and within desired parameters. Their continuous modulation helps maintain a consistent and safe operating environment.
Safety rods serve a critical role in emergency situations. These rods are engineered for rapid insertion into the reactor core to immediately halt the nuclear chain reaction. This process, known as a SCRAM, is a vital safety mechanism that ensures the reactor can be quickly shut down in the event of a malfunction or other hazardous condition.
Each type plays a unique role in ensuring the reactor operates safely and efficiently under varying conditions.

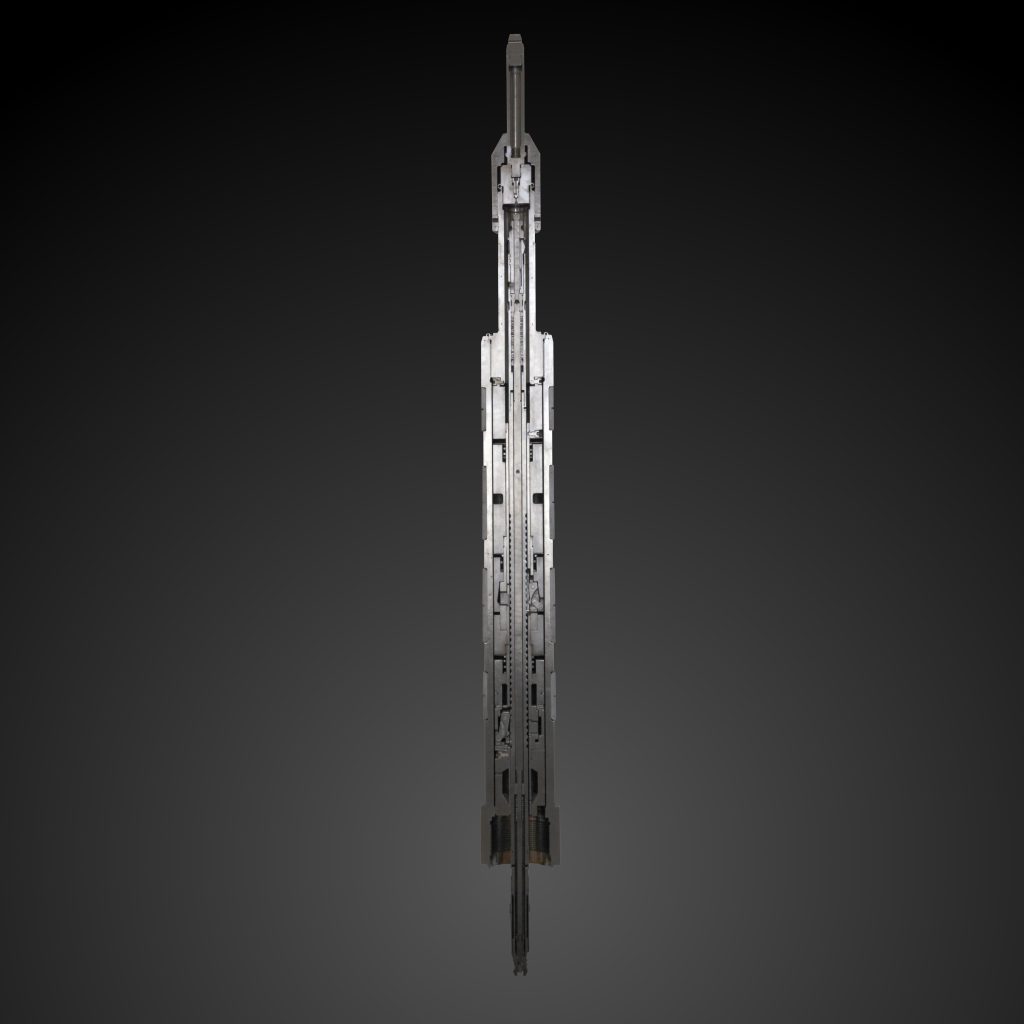

Design and Mechanism
Control rods are typically long, slender rods or blades that can be inserted vertically or horizontally into the reactor core. They are often housed in guide tubes within the reactor’s fuel assemblies.

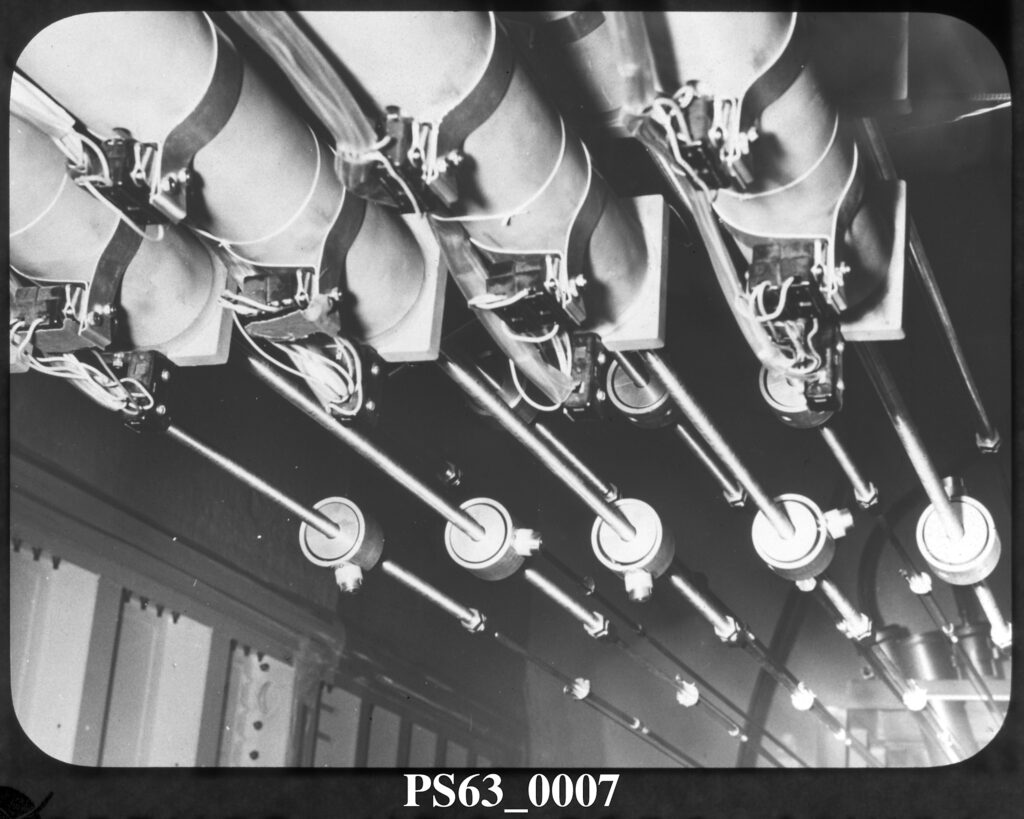

There are several mechanisms for moving control rods:
Motor-driven mechanisms utilise electric motors to raise or lower the control rods within the reactor core. These systems offer precise control and are commonly used in reactors where fine adjustments to rod positioning are necessary for maintaining stable power output.
Hydraulic systems employ pressurised fluids to move the control rods swiftly and accurately. This method is particularly effective in reactors that require rapid response times and high reliability. The fluid pressure can be finely tuned to ensure smooth and controlled rod movement, making it a preferred choice in many modern reactor designs.
Gravity-assisted systems are designed with safety as a primary concern. In these setups, control rods are held above the reactor core and are released to fall into place during emergency situations. This gravity-driven insertion ensures a rapid shutdown of the nuclear reaction, known as a SCRAM, and is a critical fail-safe feature in many reactor types.
These systems are designed with redundancy and fail-safes to ensure that, in the event of a malfunction, the rods will automatically insert into the core to halt the reaction.
What are Control Rods made of?
Materials Used in Control Rods
The effectiveness of control rods hinges on their ability to absorb neutrons efficiently. This is why they are typically made from materials with high neutron absorption cross-sections. Common materials include:

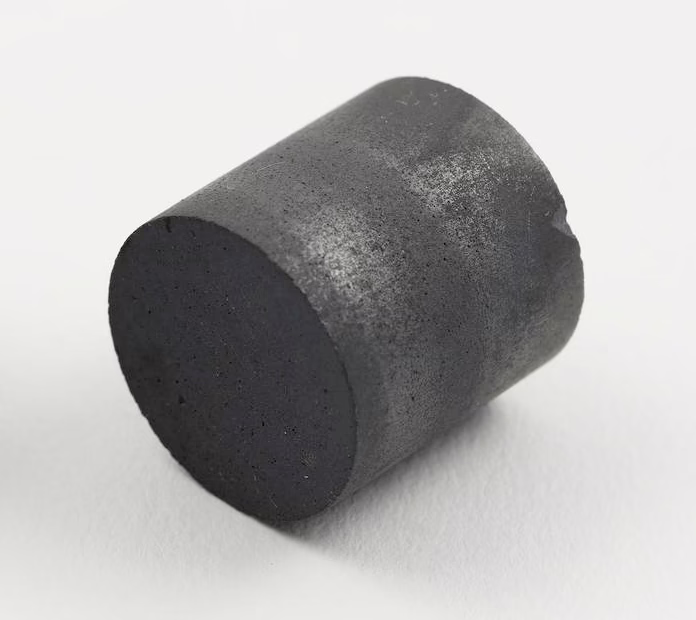

Boron is frequently used in the form of boron carbide (B₄C), a compound known for its high neutron absorption capacity and chemical stability. This makes it an excellent choice for control rods, particularly in reactors where long-term reliability and resistance to chemical degradation are essential. Boron’s effectiveness stems from its ability to capture neutrons efficiently, thereby helping to regulate the fission process with precision.
Cadmium is another widely used material in control rods due to its exceptional neutron absorption properties. However, cadmium has limitations when exposed to high temperatures, which can restrict its application in certain reactor designs. Despite this drawback, its ability to quickly absorb neutrons makes it valuable in scenarios requiring rapid reactivity control.
- Hafnium stands out for its dual benefits of high neutron absorption and excellent corrosion resistance. These characteristics make it particularly suitable for water-cooled reactors, where materials are constantly exposed to moisture and high temperatures. Hafnium’s durability ensures that control rods maintain their integrity and performance over extended operational periods.
Silver-Indium-Cadmium alloys represent a composite approach to neutron absorption. By combining the strengths of these three elements, the alloy achieves a balanced performance profile—offering effective neutron capture, structural stability, and resistance to radiation damage. This makes it a popular choice in modern reactor designs that demand both efficiency and longevity.
The choice of material depends on the reactor type, operating conditions, and desired longevity of the control rods.
